Page 8 - Technical Guide

ProSteering®

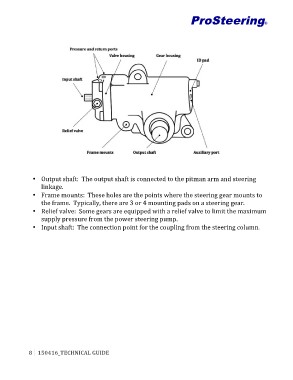

• Output
shaft:

The
output
shaft
is
connected
to
the
pitman
arm
and
steering

linkage.

• Frame
mounts:

These
holes
are
the
points
where
the
steering
gear
mounts
to

the
frame.

Typically,
there
are
3
or
4
mounting
pads
on
a
steering
gear.

• Relief
valve:

Some
gears
are
equipped
with
a
relief
valve
to
limit
the
maximum

supply
pressure
from
the
power
steering
pump.

• Input
shaft:

The
connection
point
for
the
coupling
from
the
steering
column.

8
